Product Details
＋

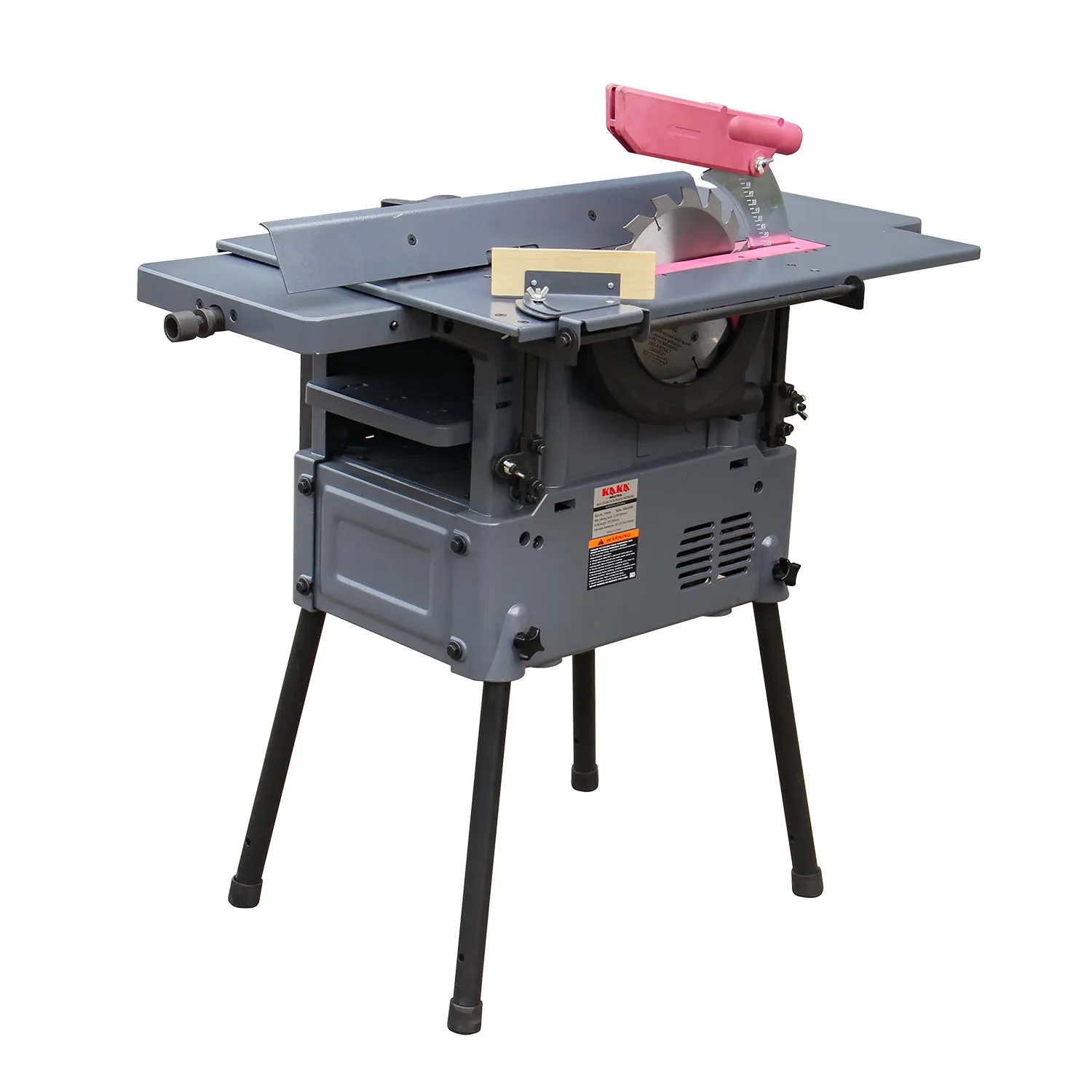

KANG Industrial Wood Working Machine WM3020
Multifunctional working purpose, save money and the workspace
Features
The 2.2 kW powerful motor runs on 240V power
Multifunctional purpose, thicknessing, sawing, planing, milling, and drilling
Standard table for drilling and milling purposes
Thicknesser with a scale to show the position
The Planer function has a cover with a dust port to contact the dust collector, keeping your workspace clean
Specifications
| SKU | 470004 |
| Model | WM-3020 |
| Max. One-way planning thickness | 250 mm |
| One way of planning depth | 0-3.5 mm |
| Max. sawing depth | 85 mm |
| Max. planning thickness with clamping device | 250 mm |
| Max. thickness of clamped object | 60 mm |
| Range of cutting planning angels | 0-45° |
| Saw blade dia. | 250 mm |
| Quantity of knives | 2 pcs |
| Knife length | 250 mm |
| Saw table dimensions | 750x510 mm |
| Planing table size | 1000x318 m |
| Milling/Drilling table size | 370x200 mm |
| Rated idle RPM | 5500 revs/min |
| Rated idle power | 2.2 kW |
| Motor type | S6-40 |
| Packing size | 105x53x55 cm |
| N.W./G.W. | 78/92 kg |
